COB vs SMD vs GOB — What’s the Difference?
One reason LED display terminology can become confusing is that SMD, COB, and GOB describe different layers of the technology stack. They are often discussed as competing technologies, but in reality they refer to different aspects of how an LED display is constructed and protected.
Understanding this distinction helps integrators and system designers choose the right display for the environment.
SMD (Surface-Mounted Device)
SMD refers to the type of LED package used to create each pixel.
In an SMD display, red, green, and blue LED chips are combined inside a small surface-mount package. That package is then soldered onto the LED module’s circuit board.
This technology has been refined over many years and remains the most widely deployed LED pixel structure in the industry.
Key characteristics of SMD displays:
Mature and widely proven technology
Strong brightness and color performance
Cost-effective across many pixel pitches
Individual LED packages can often be replaced during service
Because of its reliability and cost efficiency, SMD continues to power the majority of LED walls used in houses of worship, stages, corporate environments, and event production.
GOB (Glue-on-Board)
GOB is not a different pixel technology—it is a protective process applied to SMD displays.
In a GOB display, a transparent epoxy or resin layer is applied over the surface of the LED modules after the SMD LEDs are mounted. This coating helps protect the LEDs from damage.
The result is a display that offers many of the benefits of SMD technology while adding additional environmental protection.
Benefits of GOB displays include:
- Improved resistance to impact and physical damage
- Protection from dust and moisture
- Reduced risk of LED detachment from the board
Because of these advantages, GOB is often used in environments where the display may experience more interaction or physical exposure, such as:
- Educational environments
- Retail spaces
- Public venues
- Interactive installations
COB (Chip-on-Board)
COB represents a different approach to building the LED pixel itself.
Instead of packaging the LED chips into SMD components first, COB displays mount the individual LED chips directly onto the circuit board. A protective encapsulation layer is then applied across the display surface.
Although the concept of chip-on-board manufacturing has existed in electronics for many years, recent improvements in manufacturing consistency and yield have made COB increasingly practical for commercial LED wall deployments.
Key characteristics of COB displays include:
- Extremely durable display surface
- Very tight pixel pitch capability
- Smooth visual appearance at close viewing distances
- Improved environmental protection from the encapsulation layer
These characteristics make COB particularly attractive for fine-pitch indoor applications, including:
- Control rooms
- Broadcast environments
- Corporate installations
- Premium architectural displays

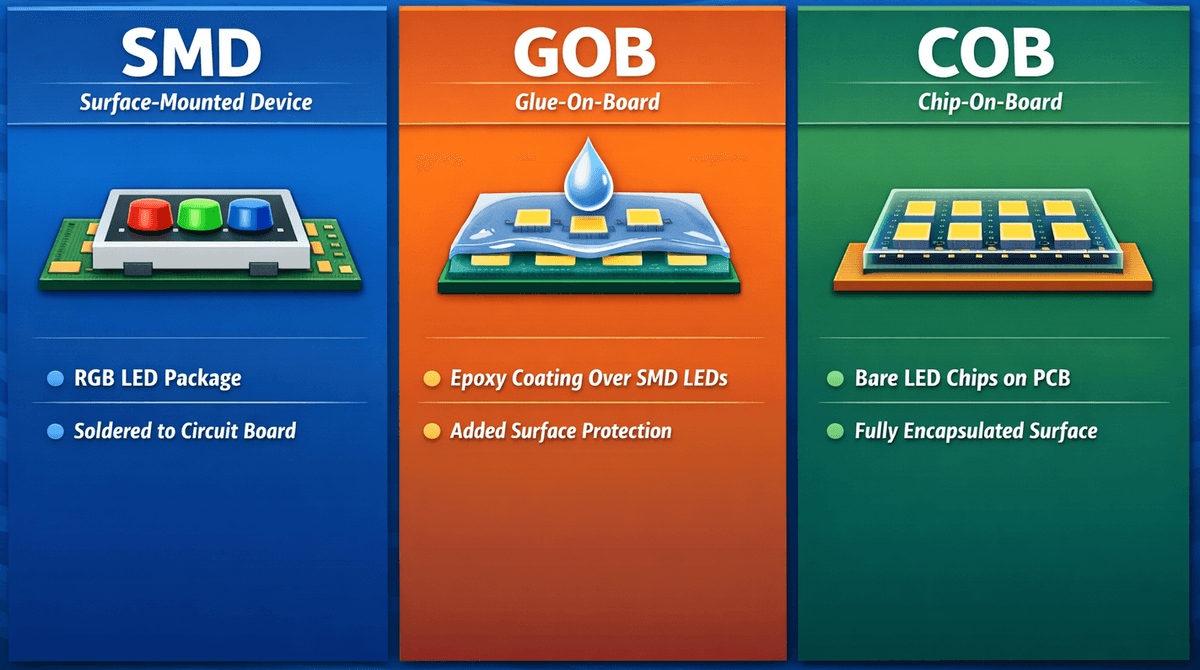

A Simple Way to Think About It
A helpful way to understand the relationship between these technologies is:
SMD vs COB = how the pixel is built
GOB = a protective coating applied to SMD displays
In other words:
- SMD is the traditional pixel package used in most LED walls
- GOB enhances SMD with additional protection
- COB changes the way the pixel itself is manufactured
Each approach brings advantages depending on the environment and performance requirements of the installation.
There is no single “best” technology for every LED wall. Instead, the right choice depends on the application, viewing distance, environment, and budget.
SMD remains the most widely used and proven solution across many installations, while COB is becoming increasingly accessible as manufacturing improves and adoption grows.
